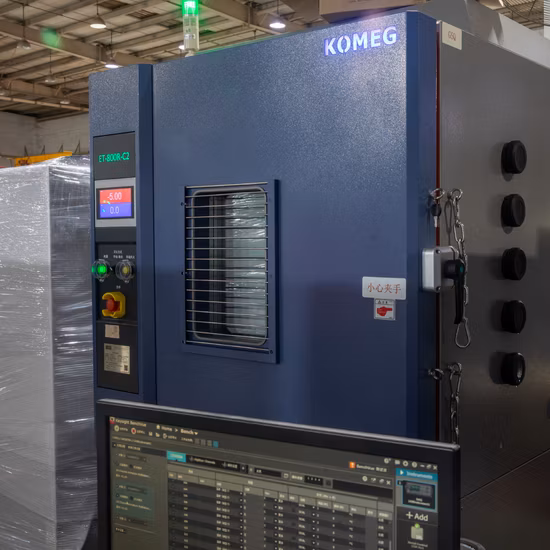

Industrial Laboratory Temperature Humidity Environmental Stability Climate Test Equipment

Basic Info.

Model NO.	KMH-series
Insulation	Glass Fiber + Fire PU Foam
Working Chamber Volume	64-1000L
Compressor	Semi-Hermetic Compressor(France Imported Tecumseh)
Temp. Constancy	+/-0.5 Oc/Min
Blower	Centerifugal Blower
Heater	Iron-Chrome Wire Heater
Temp. Range	-40oc~+150oc
Temp. Uniformity	+/-0.5 Oc/Min
Transport Package	Strong Plywood Case, Meet International Standards
Specification	Standard and customized, ISO9001, SGS, CE, TUV, UL
Trademark	KOMEG
Origin	Dongguan, China
HS Code	90321000
Production Capacity	1000 Sets/Year

Product Description

Industrial Temperature Humidity Environment Stability Climate Test Equipment
Applications
KOMEG brand CE Certified Environmental Equipment, especially constant temperature and humidity test chamber is used to test material structure or composite, in the high temperature and ultralow temperature continuous environment.
Toleration of this material to these circumstances. Test chemical change or physical damage caused by their expansion and contraction. Suitable for electronic, LED lighting industry, auto parts, chemical industry, building materials, mobile computers, batteries, plastic, metal, rubber, etc. Material.
Under the condition of high and low-temperature change, test various performance reliability index of related product spare parts and materials for institutions of higher learning, scientific research units, etc. Can be used as the basis of improving product or reference.

Industrial Laboratory Temperature Humidity Environmental Stability Climate Test Equipment

KOMEG has more than 30 years of experience in this industry and can provide suitable equipment according to your specific requirements. We have customized equipment for many customers to meet various complex test conditions and standards. If you can provide detailed demand information, I believe we can provide you with the most proper products.
Technical points to be confirmed

1. Temperature humidity test chamber

1.1 What is the inner chamber size?

Our standard models include 64L/150L/225L/408L/1000L, etc.
It depends on the total volume, weight, quantity, materials type, heat dissipation of the DUT(device under test) to choose a proper chamber model.

1.2 What is the total volume, weight, materials type and heat dissipation of the DUT(device under test)?

1.3 What is temperature control range?
Our standard temperature range:
R: -20ºC~150ºC
L: -40ºC~150ºC
S: -70ºC~150ºC

1.4 What is the humidity control range?
Our standard humidity control range is 20%RH to 98RH. 5%RH or 10%RH is optional

1.5 What is temperature ramp rate?
Our standard heating rate: 3ºC/min, cooling rate: 1ºC/min.

1.6 What are the test profiles or conditions?

1.7 Do you have frequent test profiles or conditions?An example as below.

1.8 Any other special requirements, not mentioned above?

Industrial Laboratory Temperature Humidity Environmental Stability Climate Test Equipment

Why Choose KOMEG?
Our climatic chambers are designed for at least 10 years operation without any big problems.
To get it, we have done:
1. Use high quality and well known components from Tecumseh, Copeland, Bitzer, Danfoss, Omron, Schneider, Gavazzi, etc
2. Excellent craftmanship, such as clear labels on each wires, laser cutting metal work, etc
3. Advance technology, such as 30% energy saving CFD technology(computational fluid dynamics) and copper tube bending technology
Ce Certified Constant Environmental Test Chambers for quality assurance testing

Environmental Temperature and Humidity Chamber
Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load)
Model		KMH-R series					KMH-L series					KMH-S series
		150R	225R	408R	800R	1000R	150L	225L	408L	800L	1000L	225S	408S	800S	1000S
Temp. range		-20ºC~150ºC					-40 ºC~+150ºC					-70ºC~+150ºC
Interior sizel	W(mm)	600	700	700	1000	1000	600	700	700	1000	1000	700	700	1000	1000
	H(mm)	600	700	750	1000	1000	600	700	750	1000	1000	700	750	1000	1000
	D(mm)	460	480	800	800	1000	460	480	800	800	1000	480	800	800	1000
Exterior size	W(mm)	880	980	980	1280	1280	880	980	980	1280	1280	980	980	1280	1280
	H(mm)	1730	1890	1940	2160	2160	1730	1890	1940	2160	2160	1890	1940	2160	2160
	D(mm)	1400	1460	1740	1750	1950	1400	1460	1740	1750	1950	1460	1740	1750	1950
Power(KW)		5.8	6	7.5	12.8	12.8	7.5	7.5	8.5	14.5	14.5	9.5	10.6	18.5	18.5
Weight(KG)		240	280	400	500	580	250	300	420	530	600	330	450	550	650
Humidity uniformity		±3.0%R.H			±5.0%R.H		±3.0%R.H			±5.0%R.H		±3.0%R.H		±5.0%R.H
Heat up time		-20ºC~+100ºC,within 35 min					-40ºC~+100ºC, within 45 min					-70ºC~+100ºC,within 60 min
Pull down time		+20ºC~-20ºC, within 45 min					+20ºC~-40ºC , within 60 min					+20ºC~-70ºC,within 80 min
Standard accessories		Sight window1, cable port(portΦ50mm)1, shelves2, chamber lamp1, power cable *2m
Safety device (standard)		No fuse breaker, over pressure\over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection
Control System		Balanced Temperature & Humidity Control System
Refrigeration system		Air Cooled (Water Cooled Type is option)
		Hermetic compressor,Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23)										Hermetic compressor, Cascade Refrigeration , CFC free refrigerant (HFC-507/HFC-23)


Controller		Panel:7-inch LCD Touch panel, Chinese or English display selectable
		Operation model :Program or fix point running
		Memory capacity :120programs,1200steps,
		All repeat 999 cycles, part repeat 99 cycles
Humidity Range		20~98%R.H
Temp. constancy		±0.5ºC
Humidity constancy		±2.5%R.H
Temp. uniformity		±2.0ºC
Interior material		Stainless Steel Plate(SUS 304)
Exterior material		Baked Painting Steel Or Stainless steel(SUS304)
Insulation material		Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp.		+5ºC~+35ºC
Wiring method		AC 380±10%50Hz ,3 phase 4 wires +Ground Wires
Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available

Industrial Laboratory Temperature Humidity Environmental Stability Climate Test Equipment

After-sale Service:
If you face any problems in the future during the testing process we promise we will give you a reply within 48 hours and the solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by the customer.
